제품 상세 정보:
결제 및 배송 조건:
|
| 지명 표준: | GB/T3512, UL1581, ASTM-D2436, ASTM-D5423, ASTM-D5374, JIS K7212 및 JIS B7757 | 애플리케이션: | 고무, 가황, 열가소성 고무에 대한 가속노화 및 내열성 시험용 |
|---|---|---|---|
| 온도 범위: | 상온+10℃~300℃ | 항공 환율: | 100~200회/시간 |
| 공기 속도: | 0.5~1.5m/s | 공기 교환 방식: | 팬에 의한 강제 환기 |
| 테스트 기간: | 1분-99시간 | 일하는 힘: | AC220V ± 10%, 50Hz |

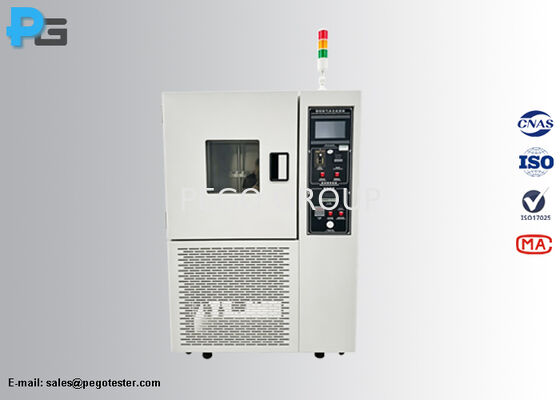

The force-air aging test chamber performs accelerated high-temperature aging tests on test specimens via forced hot air circulation. Equipped with a forced ventilation fan system, the unit precisely controls the air exchange rate inside the chamber to simulate the aging degradation of products under long-term high-temperature environments. It is used to evaluate the heat resistance of electrical & electronic components, insulating materials, plastic products, rubber parts and other materials under high-temperature operating conditions.This equipment complies with global testing standards including GB/T3512-2001/2014, GB/T 11026.4-1999, GB/T 2951.41-2008, JB7444-1994, UL1581, ASTM-D2436, ASTM-D5423 (type II ovens) and ASTM-D5374, CNS3556, CNS742, JIS K7212 and JIS B7757.
| Working volume | W450*H550*D450mm (111L) | W500*H600*D500mm (150L) |
|---|---|---|
| Overall dimension | W1020 *H1100*D700mm | W1100*1200*D780mm |
| Temperature range | R.T.+10℃~300℃ | |
| Temperature fluctuation | ≤±0.5℃ (No-load) | |
| Temperature uniformity | ≤±2℃(No-load) | |
| Temperature rise speed | 1.0～3.0℃/min | |
| Temperature resolution | 0.1℃ | |
| Air exchange rate | 100–200 times/hour | |
| Air velocity | 0.5～1.5m/s | |
| Air exchange time | 1min-99h (settable) | |
| Air exchange method | Forced ventilation by fan | |
| Air exchange volume control | Automatic instrumentation control, not naturally ventilated | |
| Sample turntable | 2-tier stainless steel rotating rack | |
| Rotating speed | 1-10r/min (3600 rotation) | |
| Time setting range | 1-999h (with timer function: Automatically stops the test when the set time is reached) | |
| Working power (input) | AC220V, 50Hz | |
