제품 상세 정보:
결제 및 배송 조건:
|
| 적용: | AC/DC 전압, 전류, 전력, 역률, 주파수, 고조파 테스트용 | 전압 테스트 범위: | 0~600V(AC/DC) |
|---|---|---|---|
| 현재 테스트 범위: | 0-20A(AC/DC) | 역률 테스트 범위: | -1.000~1.000 |
| 주파수 테스트 범위: | 5KHz | 입력: | AC100V ~ 240V, 50Hz/60Hz |
| 강조하다: | 600V Voltage Test Range Digital Power Meter,20A Current Test Range Electrical Parameter Measuring Instrument,5KHz Frequency Test Range Multifunctional Power Analyzer |
||
| Parameter | Specification |
|---|---|

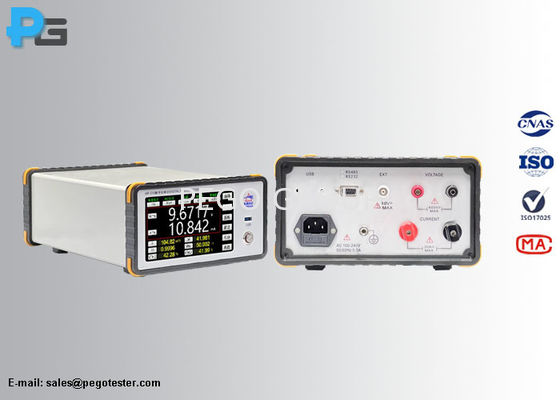

| Model | HP510 |
| AC/DC Voltage | 600Vrms MAX |
| AC/DC Current | 20Arms MAX |
| Power Factor | -1.000 to 1.000 |
| Test Accuracy | ±(0.1% of Reading + 0.2% of Range), 0.2 Level |
| Input Bandwidth | DC, 0.5Hz to 100kHz |
| Power/ Frequency Filter | OFF, 500Hz, 5KHz |
| Integration Modes | Manual, Standard, or Repeated Integration |
| Integration Time | 0:00:00 to 9999:59:59 (hours:minutes:seconds) |
| Measurement Mode | 0.2 seconds per measurement |
| Power Supply | AC100V-240V, 50Hz/60Hz |
| Dimensions | 214mm (W) × 320.5mm (D) × 120.5mm (H) |
| Parameter | Voltage | Current |
|---|---|---|
| Input Type | Floating input via resistor divider | Direct input or sensor input |
| Input Impedance | ≈2MΩ | Direct: ≈500mΩ (200mA and below), ≈50mΩ (0.5A and above) Sensor: ≈100KΩ |
| Measurement Range (RMS) | 15V, 30V, 60V, 150V, 300V, 600V | Direct: 5mA to 20A Sensor: 50mV to 10V |
| Maximum Continuous Input | 1.5kV Peak or 1kV RMS (whichever is smaller) | 30A Peak or 20A RMS (200mA and below) 100A Peak or 30A RMS (0.5A and above) |
| Condition | Specification |
|---|---|
| Operating Temperature | 0 to 40℃ |
| Storage Temperature | -40 to 70℃ |
| Humidity | <70%RH operating, <90%RH storage (no condensation) |
| Usage | Indoor use only, altitude <2000 meters |
