| 애플리케이션: | 코드 고정 장치에 의한 케이블 고정의 유효성을 확인하기 위해 | 표준을 준수: | IEC60884-1 제 23.2항 그림 20, VDE0620-1 |
|---|---|---|---|
| 작업력: | 220V/50Hz | 보증: | 12 개월 |
| 강조하다: | 220V/50Hz Cord Retention Tester,60 Times/Min IEC60884-1 Test Apparatus,Remote After-Sales Service Plug Socket Tester |
||

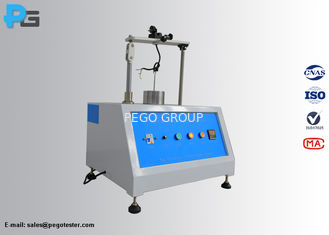

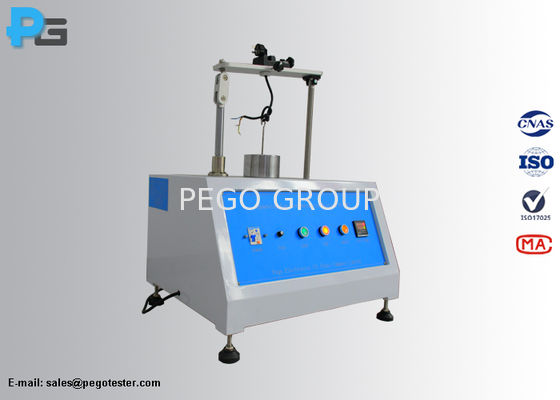

The cord retention testing apparatus is designed according to IEC60884-1 clause 23.2 figure 20 standards. This equipment verifies the effectiveness of cable retention by cord anchorages in various electrical components including removable plugs, removable mobile sockets, non-rewirable plugs, and rewirable mobile sockets. The apparatus applies controlled pulls of 50N/60N/80N/100N to flexible cables at a rate of 1 pull per second for 100 cycles.
| Power Supply | AC 220V±10%, 50Hz/60Hz |
|---|---|
| Number of Testing | 1~9999 (x1x10x100) |
| Weight Configuration | 10N*1, 60N*1, 20N*2 (Tests 40N, 50N, 60N, 80N, 100N weights) |
| Material | SUS304 stainless steel |
| Testing Rate | 60 times/min |
| Compliance Standard | IEC60884 figure 20, VDE0620 |
| Rated Current (A) | Rated Voltage (V) | Tensile Force |
|---|---|---|
| 2.5 | -- | 50 |
| 2.5～16 | <250 | 60 |
| 2.5～16 | >250 | 80 |
| >16 | -- | 100 |
The equipment ships as a complete unit requiring only simple wiring connections upon receipt. No on-site installation service is typically needed.
The warranty covers 12 months from delivery date. Our engineering team resolves 95% of issues through remote support with 24-hour response during business days. We use premium components for reliability, but if parts fail within warranty, replacements are provided at no cost with installation guidance.
A factory test report is included at no additional cost. For an ISO17025 authorized laboratory calibration certificate, additional fees and extended lead time apply.
