제품 상세 정보:
결제 및 배송 조건:
|
규범 적 표준: | IEC61347-1 그림 D.1 및 부록 d | 작업 디멘젼: | l610mm * W610mm * H610mm |
---|---|---|---|
시험 구획의 치수 (바닥): | l560mm * W560mm * d25mm | 테스트 객체: | 열 보호 램프 제어 장치 (밸러스트) |

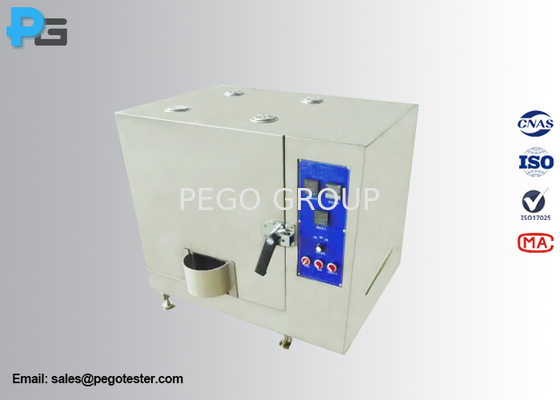

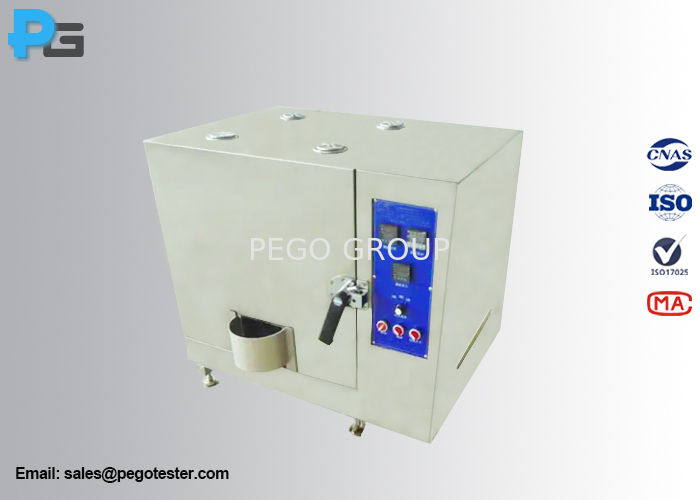

강조하다: | IEC61347-1 heating enclosure,thermally protected ballast tester,LED testing equipment enclosure |
Parameter | Details |
---|---|
Inner dimension | L610mm × W610mm × H610mm |
Overall dimension | L660mm × W660mm × H760mm |
Dimension of test compartment (floor) | L560mm × W560mm × D25mm |
Height of heater compartment | 75mm |
Structure of front door | Up-and-down sliding type, with an opening size of 150×150 mm, and sealed by an aluminium semicircular structural component |
Sample supports | Designed according to figure D.1 of IEC61347-1 |
Heating elements |
|
Control unit |
|
Test temperature | 40℃ |
Working power | 220V±10%, 50Hz |
