| 규범 적 표준: | /NZS3112 그림 3.10 및 절 3.14.8.1 | 소재: | 경화강 |
|---|---|---|---|
| 적용: | 각 소켓 접점의 인출력을 확인합니다 | ||
| 강조하다: | Withdrawal Force Test Pin,Plug Socket Tester Test Pin |
||

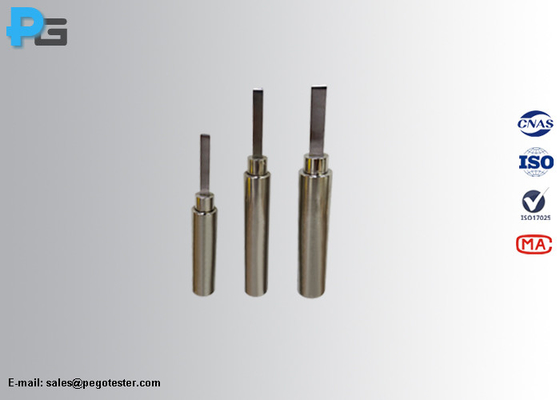

Contact Independence Test Pin for Withdrawal Force Test for Each Socket Contact AS/NZS3112 Figure 3.10
1. Introduction
Contact independence test pin is designed according to AS/NZS3112 figure 3.10 and clause 3.14.8.1, for checking the withdrawal force of each socket contact. The withdrawal force shall be not less than 1.5N for ratings up to and including 10A, 2N for ratings above 10A up to and including 15A, and 3N for rating above 15A.
2. Specification
|
Dimension |
As per AS/NZS3112 figure 3.10 |
|
Configured mass |
1.5N (≤10A) 2N (>10A and ≤15A) 3N (>15A) |
AS/NZS3112 figure 3.10
