제품 상세 정보:
결제 및 배송 조건:
|
| Standard: | ASTM D5276 | 적용: | 패키지, 카튼 상자, 용기 |
|---|---|---|---|
| Warranty: | 12 Months | 힘: | 전자적입니다 |
| Power supply: | 220V 50Hz | 이름: | 낙하 시험기 |
| 강조하다: | 자유 떨어지는 패키지 드롭 테스터,ASTM D5276 패키지 드롭 테스터,이중 날개 포장 떨어뜨림 검사기 |
||

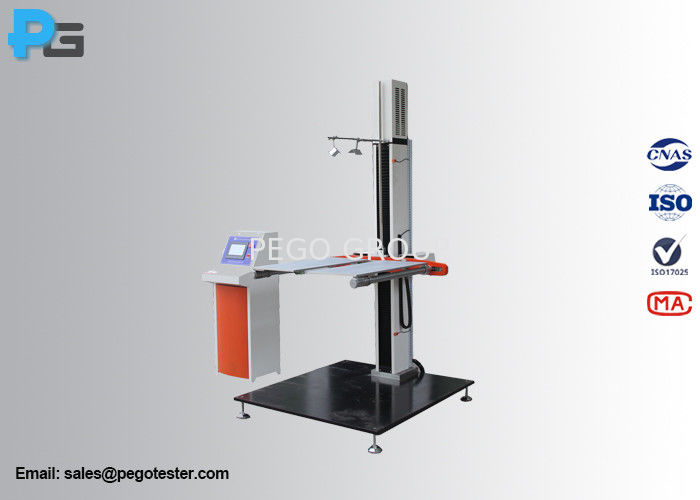

The double arm free-fall drop test equipment is used for simulating a free fall drop of the container during the normal transit and rough handling, the test can be applied to a face, corner or edges of a container, and can meet the test requirements of CNAS 29999, ISO2248-1985, ASTM D5276, IEC60068-2-27 and etc..
The free fall drop test can evaluate the ability of a container to withstand the sudden shock resulting from a free fall drop impact, or evaluate the ability of a container and its inner packing to protect its contents during the sudden shock resulting from a free fall drop impact, so that to improve and prefect the container design.
| Overall size |
L1200mm * D1100mm * H2050mm (test rig) L400mm * D430mm * H1150mm (control box) L780mm*W280mm (Double-arm) |
| Control unit | Touch screen |
| Maximum size of test specimen | L800mm * W800mm * H1000mm |
| Maximum weight of test specimen | 80KG |
| Falling height | 400-1500mm |
| Error of falling height | ±10mm |
| Impact surface |
Error: <10 Material: steel Thickness: 20mm Dimension: L1200mm*W1100mm |
| Working power | 220V/50Hz |
