Reference standard: | IEC60884-1 clause 30.1 & figure 41 | Configuration: | Hardness test stand, rectangular blade, round blade and load |
---|---|---|---|
Number of working stations: | 2 | Application: | to check if the material of pin-insulating sleeves can withstand the stresses to which it may be subjected at high temperature |
강조하다: | 핀 단열 수갑 압력 검사 장치,IEC 60884-1 압력 시험 장치,고온 압력 시험 장치 |

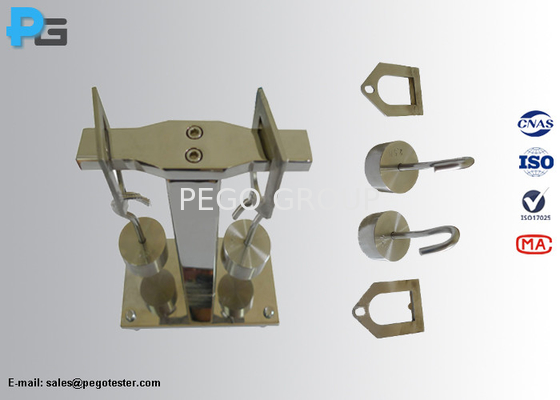

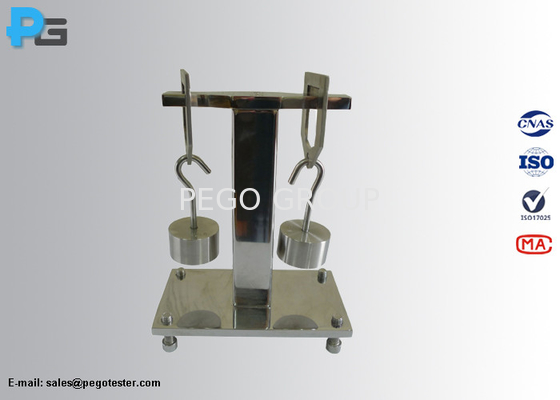

IEC 60884-1 도 41 고온 압력 테스트 장치
1소개
고온 압력 시험 장치는 IEC60884-1 제30.1항, 도 41항, IEC60598-2-20 제20항의 규격에 부합한다.15, EN60811-3-1 및 GB2099.1-2008 조항 30.1 도 41 등 It’s used to the high temperature resistance test of the material of pin-insulating sleeves which occurred in conditions approaching bad connection conditions and at low temperatures in particular conditions of service장치는 단단성 테스트 래크, 둥근 블레이드, 직사각형 블레이드 및 부하 무게로 구성됩니다. 2.5N 힘은 블레이드를 통해 샘플에 적용됩니다.표본이 있는 장치는 200±5°C의 온도에서 2시간 동안 난방실에서 유지된다., 샘플은 10초 이내에 장치에서 제거되고 차가운 물에 잠겨 냉각됩니다.표기점에 남아있는 단열의 두께가 측정되고 시험 시작시 측정된 원래 값의 50% 이상 감소하지 않아야 합니다..
2파라미터
구성 | 단단성 시험판, 직사각형 잎, 둥근 잎 및 부하 |
가장자리 두께 | 0.7±0.01mm |
부하 | 2.5N 무게 |
작업장 수 | 2 |
